PUMPS & FIRE PUMPS

Fire Pumps in Saudi Arabia

Alyamitech offers comprehensive fire pump solutions, catering to a wide range of needs in Saudi Arabia. We provide UL Listed, FM Approved fire pumps designed for optimal performance, durability, and compliance with international standards.

Saudi Arabia, with its rapidly expanding infrastructure and development projects, necessitates advanced fire safety solutions to protect life and property. Alyamitech, a leading supplier of HVAC products and industrial instruments in Saudi Arabia, has established a strong foothold in the market with its exceptional fire pump and pump products. Alyamitech supplies UL Listed & FM Approved LIFECO UK (Lichfield Fire And Safety Equipment Company) produced fire pumps, as well as general pumps from renowned manufacturers Grundfos and Wilo.

In the sphere of fire protection systems, different categories of fire pumps play a critical role in ensuring effective and reliable operation during emergencies. Alyamitech supplies a variety of fire pumps, including End Suction Fire Pumps, Split Case Fire Pumps, Vertical Turbine Fire Pumps, Jockey Pumps, and Fire Pump Skid Systems, catering to the diverse needs of their clients across Saudi Arabia.

Alyamitech provides following Fire Pumps in Saudi Arabia:

  • Split Case Fire Pumps
  • End Suction Fire Pumps
  • Vertical Turbine Fire Pump
  • Jockey Pump
  • Fire Pump Skid Sytem

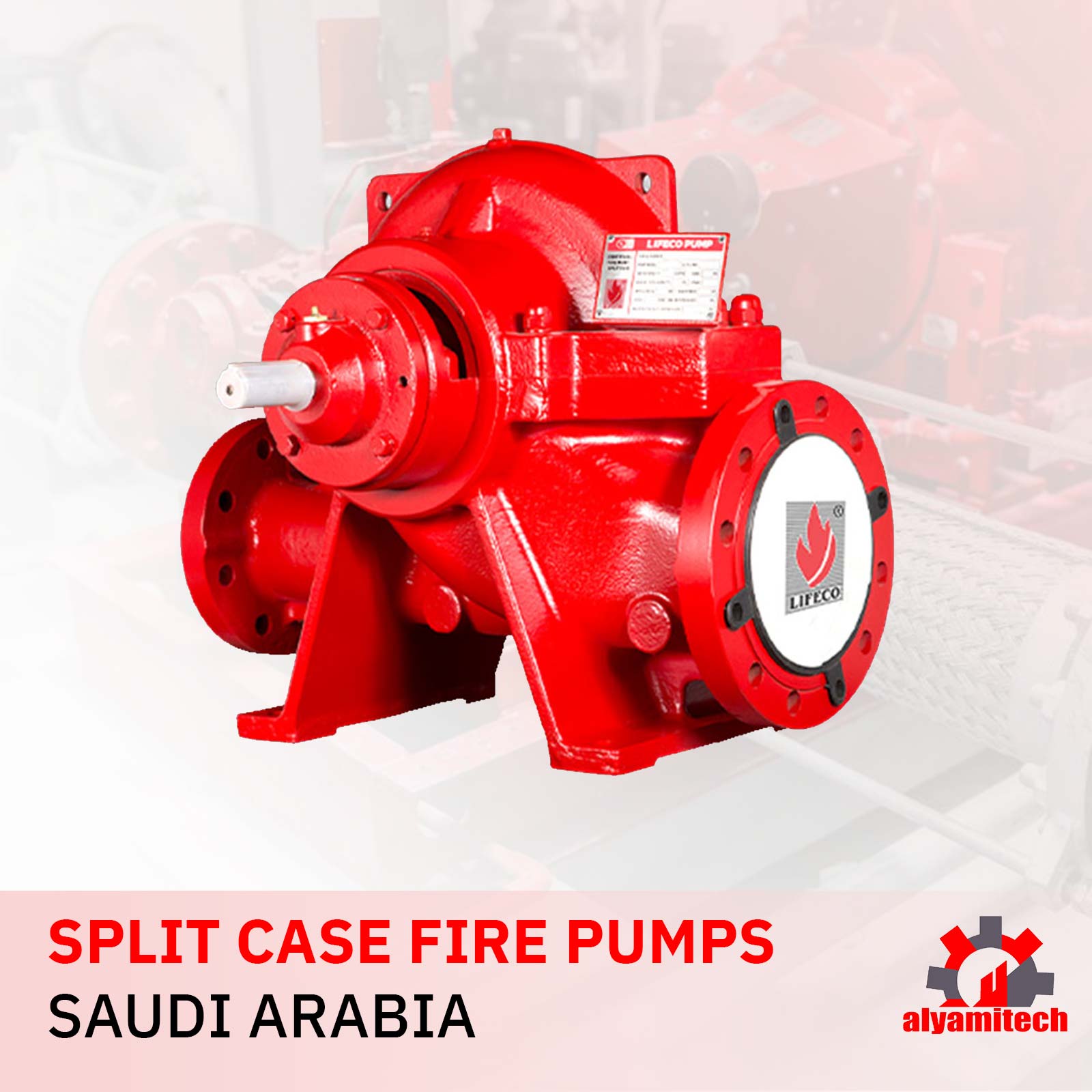

Split Case Fire Pumps

LIFECO Split Case Fire Pump is renowned for its efficiency and performance, particularly in larger fire protection systems. With capacities from 50 to 1000 GPM and pressures from 60 to 234 PSI, this pump is compliant with NFPA 20 standards. It is available in both electric motor and diesel engine configurations, making it versatile and adaptable to various operational needs.

Features:
  • Capacity: 50 GPM to 1000 GPM
  • Working Pressures: 60 to 234 PSI
  • Speed: 2900, 3000, and 3500 RPM
  • Compliance to NFPA 20 Design Requirements
  • Wide Range of Flows and Pressures
  • Available in Electric Motor and Diesel Engine Configurations
  • Hydrostatic and Certified Performance Tests

These attributes make the Split Case Fire Pump an excellent choice for safeguarding commercial, industrial, and residential buildings.

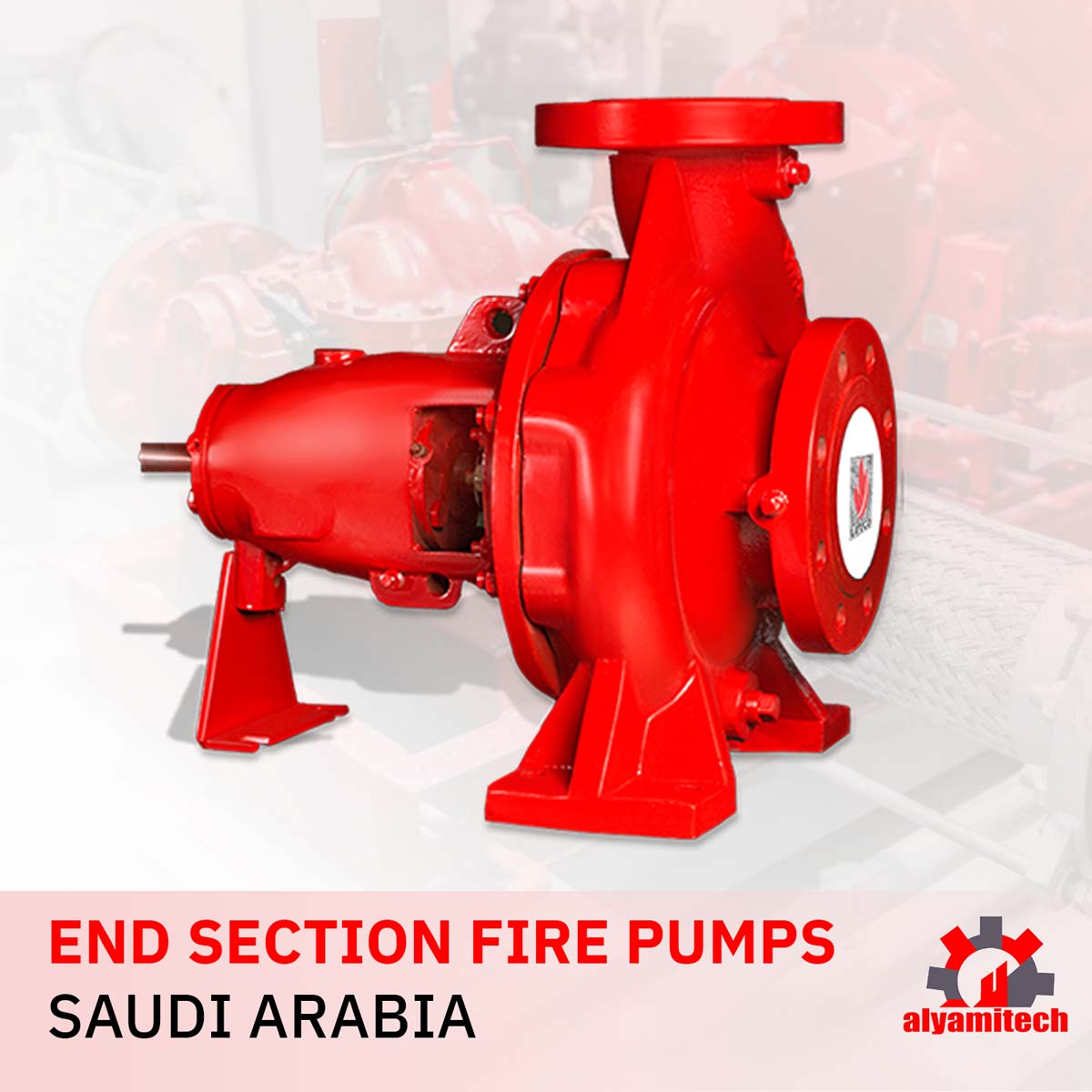

End Suction Fire Pump

LIFECO End Suction Fire Pump is designed to provide robust performance and reliability, making it an ideal choice for both retrofit applications and new installations. This pump offers capacities ranging from 150 GPM to 3500 GPM and working pressures between 88 to 335 PSI. One of its standout features is the dynamically balanced double suction impeller that ensures smooth operation and extends bearing life.

Features:
  • Capacity: 150 GPM to 3500 GPM
  • Working Pressures: 88 to 335 PSI
  • Volute Type Thru-Bore Casing
  • Frame-Mounted Design
  • Small Footprint Ideal for Retrofit
  • Dynamically Balanced Double Suction Impeller
  • Heavy Duty With Heavy Wall Thickness
  • 100% Hydrostatic & Performance Tested

The combination of these features guarantees that the End Suction Fire Pump is both durable and efficient, meeting the rigorous demands of commercial, industrial, and building applications.

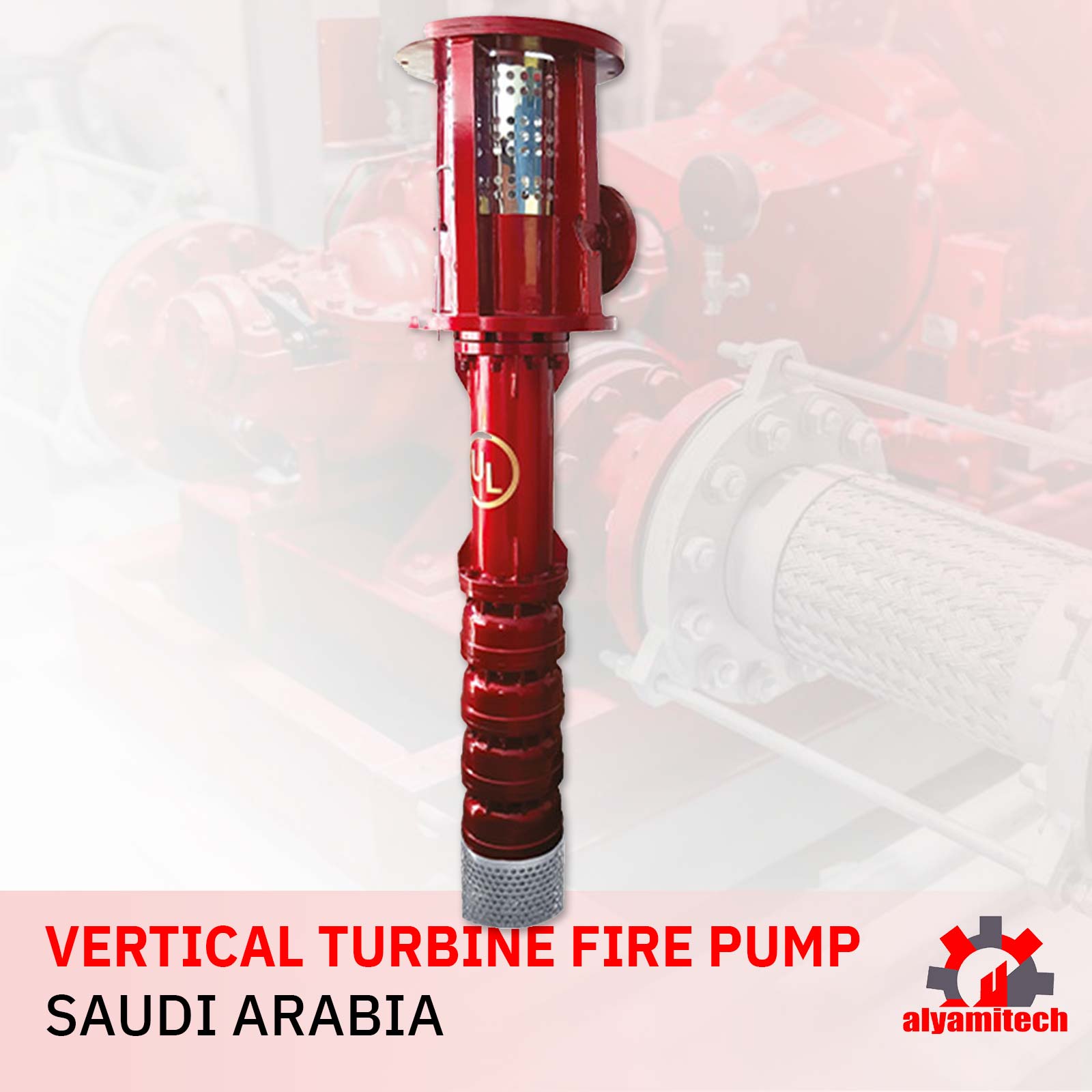

Vertical Turbine Fire Pump

LIFECO Vertical Turbine Fire Pump stands out for its capacity to handle a wide range of fire protection needs, from moderate to extreme demands. With capacities ranging from 200 to 2000 GPM and pressures between 40 to 355 psi, it ensures reliable operation even under challenging conditions. Certified under UL 448 and NFPA 20 standards, this pump is engineered for maximum reliability.

Features:
  • Capacity: 200 GPM – 2000 GPM
  • Pressures: 40 – 355 psi
  • Maximum Working Pressures: 290 to 395 PSI
  • Speed: 1480, 1760, 2900, 2980, 3000 RPM
  • Dynamically Balanced Impeller Extends Bearing Life and Ensures Smoother Operation
  • Designed and Built as per UL 448 and NFPA 20 for Maximum Reliability
  • Constructed in a Variety of Metallurgies
  • Available in 50 Hz and 60 Hz
  • Drivers with Gearboxes at Electric and Diesel Speeds
  • Designed for Easy Maintenance Without Interfering With Piping
  • Open Line Shaft, Water Lubricated Construction for Ease of Maintenance
  • Self-Venting Design Eliminates Vapor Lock and the Need for Automatic Air Release Valve

This range of features makes the Vertical Turbine Fire Pump a versatile and robust component in any fire safety system, ensuring optimal performance and ease of maintenance.

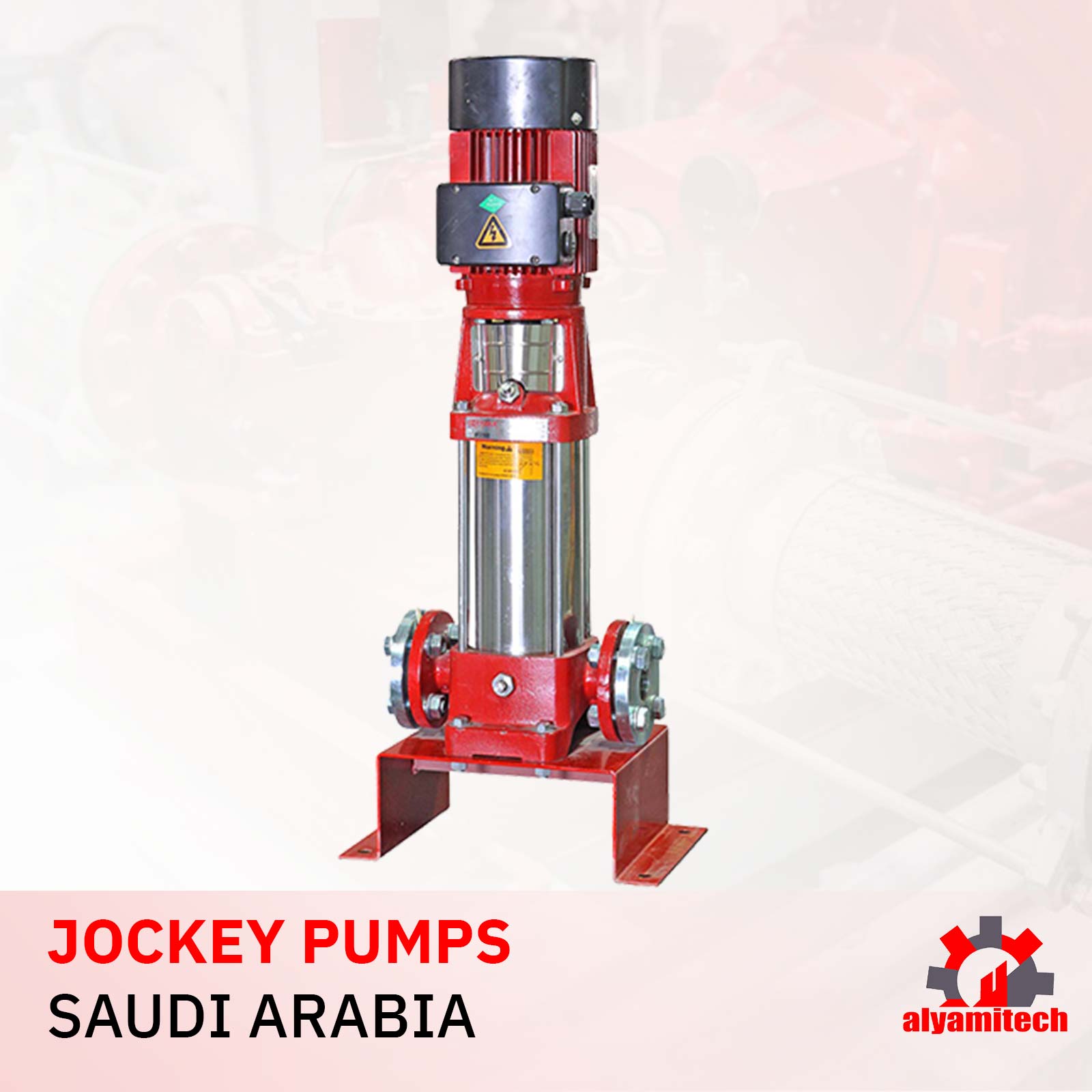

Jockey Pumps

LIFECO GMAX® Vertical Multistage Pumps serve as dependable and cost-effective solutions for maintaining fire protection system pressure. They are designed to handle a variety of thin, non-explosive liquids without solid particles, suitable for applications ranging from potable water to industrial fluids.

Features:
  • Aluminum Motor Casing
  • Stainless Steel Parts
  • Tungsten Carbide/Graphite Mechanical Seal
  • IP55 Protection

Equipped with fan-cooled motors that meet EN standards for principal dimensions and electrical tolerances, these pumps provide reliable performance while ensuring safety with built-in thermal overload switches and thermostats for additional protection.

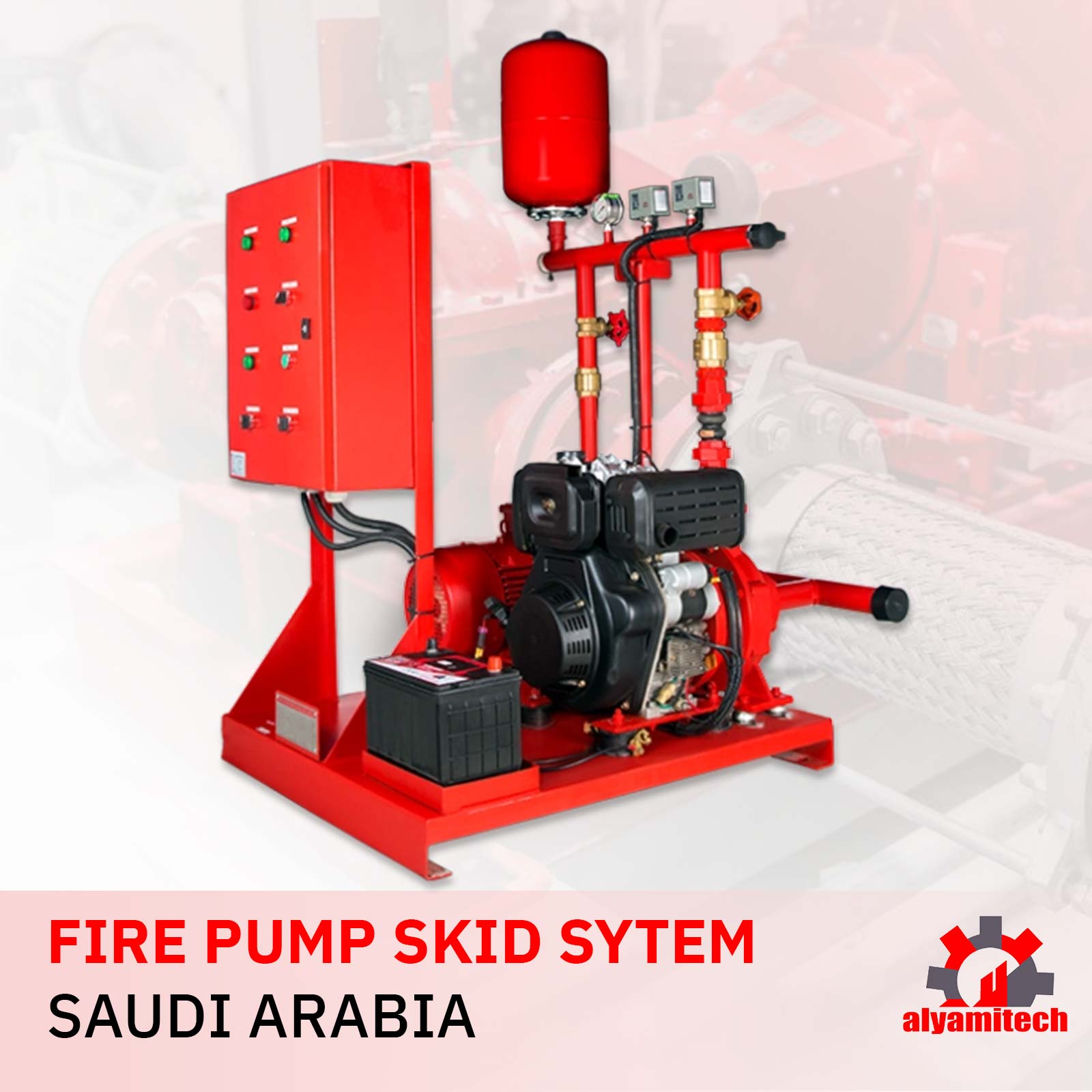

Fire Pump Skid System

LIFECO GMAX Fire Pump Skid System is a preassembled and custom-engineered fire protection solution. This robust unit includes horizontal end suction and split-case pumps paired with LIFECO HITEC motor drivers and MEGA FORCE engine drivers. It integrates jockey pumps, full discharge line control, gate and check valves, flexible joints, pressure switches, and gauges, all mounted on a common compact skid for ease of installation and operation.

Features:
  • Capacity: 50 GPM to 3500 GPM
  • Working Pressures: 72.5 to 335 PSI
  • Speed (rpm): 3500 & 3600│2900 & 3000
  • Frequency Rated: 60│50 cycle

Ready for immediate deployment, this system is pre-piped, wired, and fabricated for seamless operation, ensuring reliable and efficient fire suppression through fully automated control.


Alyamitech is a supplier of fire pumps in Saudi Arabia, providing products from brands such as LIFECO UK, Grundfos, and Wilo. The company offers a variety of fire pumps, including End Suction, Split Case, Vertical Turbine, Jockey Pumps, and Fire Pump Skid Systems, to meet diverse fire protection needs. Alyamitech’s range aims to serve commercial, industrial, and residential properties, focusing on reliability and performance. The company’s dedication to quality and customer satisfaction supports its role in advancing fire safety in Saudi Arabia. For more information or enquiries, contact us via email info@alyamitech.com or call us at +966560466106
