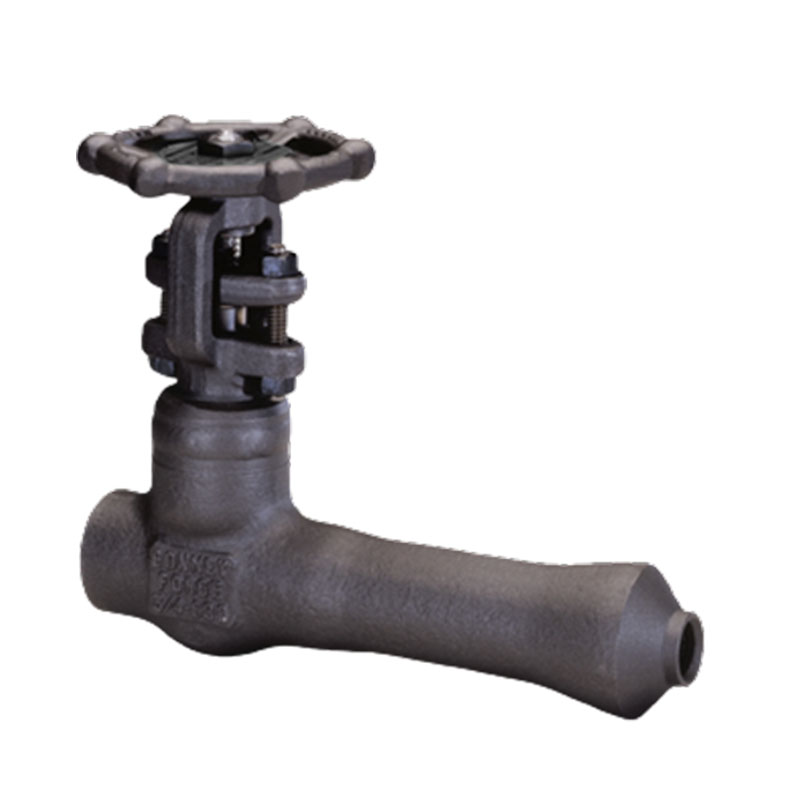

Bonney Forge’s extended body gate valves are engineered for superior performance and reliability in demanding industrial applications. These valves are available in two bonnet designs to accommodate various operational requirements:

• Bolted Bonnet Design: This design features a robust male-female joint with a spiral wound gasket made from F316L/graphite, ensuring a secure and leak-proof seal. For higher pressure applications, ring joint gaskets are available upon request.
• Welded Bonnet Design: Incorporates a threaded and seal welded joint, with an option for a full penetration strength welded joint for enhanced durability and performance.

These valves are available in Class 800 and Class 1500, making them suitable for a wide range of pressure conditions. The extended body design is integrally reinforced, allowing it to replace a fitting and nipple or branch connection, thus simplifying installation and reducing potential leak points.

Key Features:

• Construction: Bolted or welded bonnet types with a full die-forged structure for all pressure-containing parts.
• Gasket Design: Spiral wound gaskets standard up to ASME 1500; ring joint gaskets for ASME 2500 and above.
• Packing: High-quality packing compliant with API 622 for low emissions and reliable tightness.
• Operation: Low wedge-seat friction for long service life, low operation torque, and best-in-class CV values.
• Design: Outside Screw and Yoke (OS&Y) with a self-aligning two-piece packing gland and fully guided wedge to reduce wear.

Specifications:

• Size Range: 1/2 NPS to 2 NPS
• Pressure Class: 800, 1500
• Standards: API 602, ASME B16.34 for design; API 598 for inspection and testing.
