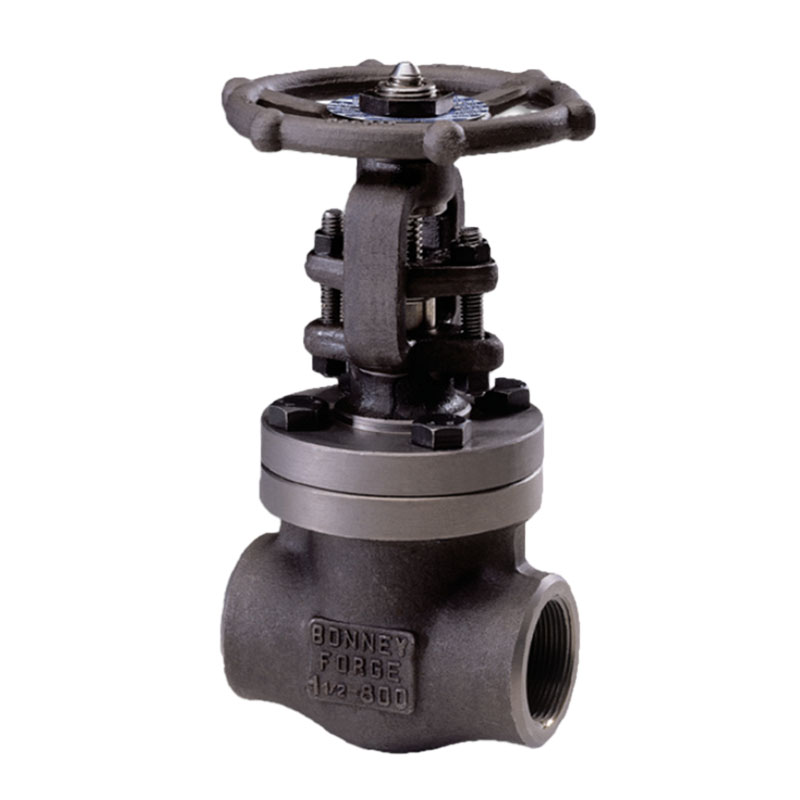

Bonney Forge’s premium gate valves deliver exceptional performance for demanding industrial applications where reliable on-off service and minimal flow restriction are essential. Available in two distinct bonnet designs to meet diverse operational requirements:

• Bolted Bonnet Design: Features a male-female joint with F316L/graphite spiral wound gasket for superior sealing integrity. Ring joint gaskets available upon request for specialized applications.
• Welded Bonnet Design: Incorporates a threaded and seal welded joint, with optional full penetration strength welded joints for maximum durability in extreme conditions.

These valves excel in applications requiring straight-line flow with minimal pressure drop. When open, the wedge-shaped closure member fully retracts, creating an unobstructed flow path that maximizes efficiency and minimizes turbulence.

Technical Specifications

• Full die-forged construction for all pressure-containing components
• Integral flanged connections with body forgings
• High-quality, low-emission packing (API 622 compliant)
• Low wedge-seat friction coefficient for reliable sealing and extended service life
• Industry-leading CV values for optimal flow characteristics
• Outside Screw and Yoke (OS&Y) design
• Self-aligning two-piece packing gland

Applications

Widely deployed across critical industries including oil and gas, pharmaceuticals, manufacturing, automotive, and marine sectors. Not recommended for throttling applications.

Engineered to meet rigorous industry standards including API 602, API 600, ASME B16.34, with comprehensive testing per API 598 and compliance with fugitive emission standards API 624, ISO 15848, and TA Luft.
