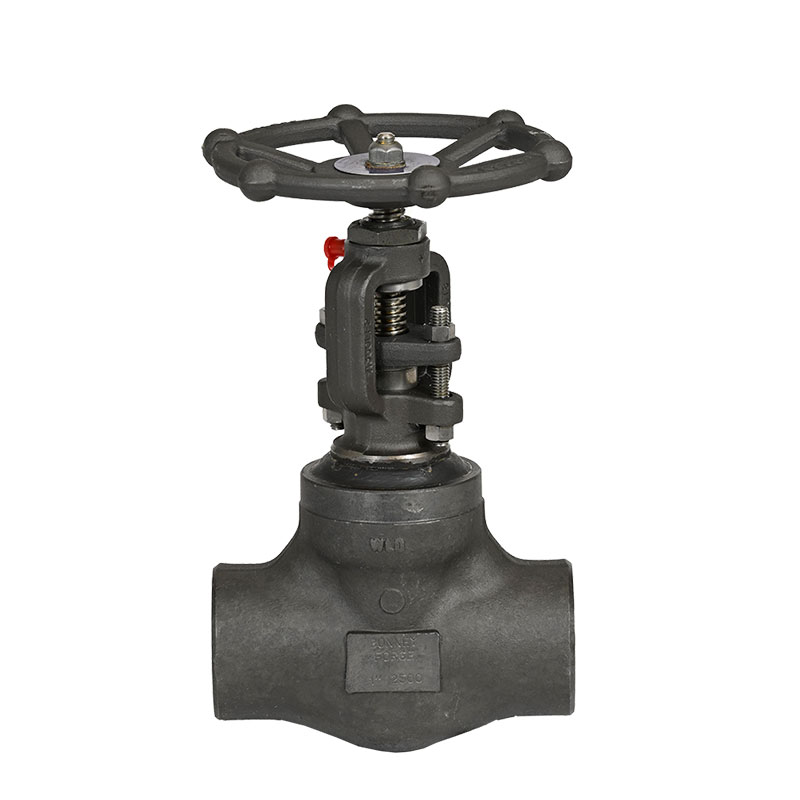

Forged Steel Globe Valve by Bonney Forge is designed for precision flow regulation and reliable shut-off in demanding industrial applications. It is suitable for industries such as oil and gas, pharmaceuticals, manufacturing, automotive, and marine, offering robust performance and durability. With a robust design and superior performance, Bonney Forge globe valves are the ideal choice for operations requiring frequent use and positive shut-off capabilities.

Key Features:

• Body-bonnet connections available in bolted or welded bonnet types for secure sealing.
• Constructed with a full die-forged structure for all pressure-containing parts, ensuring strength and longevity.
• Spiral wound gasket design for ASME 1500 class; Ring Joint gaskets standard for ASME 2500 and above.
• High-quality packing compliant with API 622 for reliable tightness and low emissions.
• Standard seat design is screwed-in type, with an integral type available as an alternative.
• High flow capacity port sizes and disc retraction minimize flow velocities and maximize service life.
• Low operation torque design with a self-aligning two-piece packing gland.
• Body-guided disc for perfect seat and disc alignment.

Applicable Standards:

• Design: API 602, API 623, ASME B16.34
• Inspection & Testing: API 598
• Marking: MSS SP-25
• Fugitive Emission: API 624, ISO 15848, TA Luft

Applicable End Finishes:

• Face to Face: ASME B16.10
• Socket Weld: ASME B16.11
• Screwed Ends (NPT): ASME B1.20.1
• Flanged Ends: ASME B16.5
• Butt Welding Ends: ASME B16.25

Size and Class Range:

• Size: 1/4 NPS – 42 NPS
• Class: 150 – 4500

The Bonney Forge Forged Steel Globe Valve is the ideal choice for applications requiring frequent operation and positive shut-off, offering unmatched performance and reliability.
