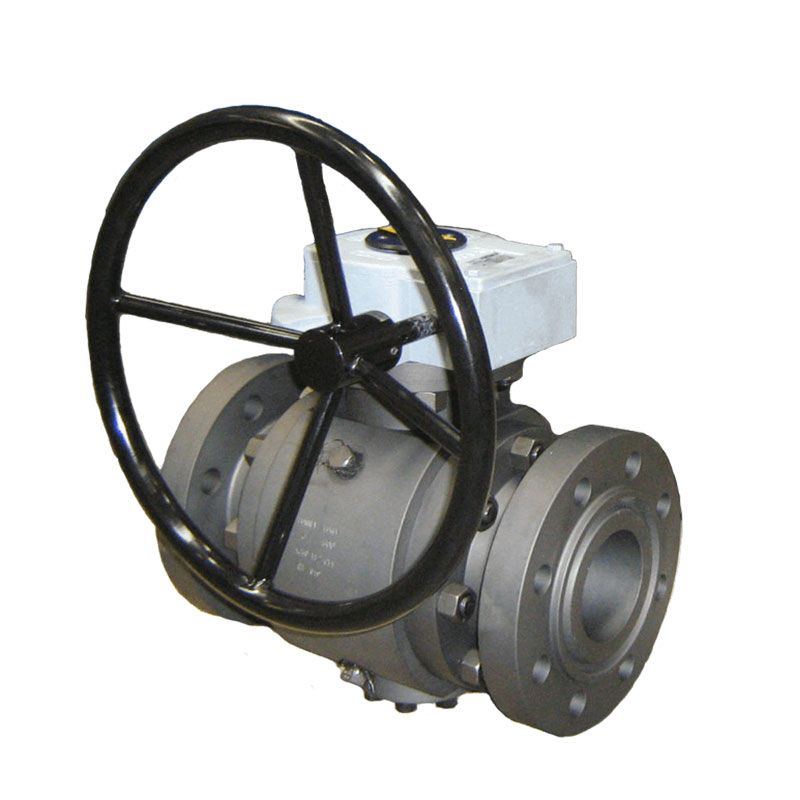

Bonney Forge’s forged trunnion mounted ball valves are engineered for superior on/off service in large and high-pressure applications. The trunnion design anchors the ball at both the top and bottom, providing stability and reliability under extreme conditions. These valves are available in a wide range of designs, materials, sizes, pressure classes, and end connections, adhering to ASME B16.34 and, where applicable, API 608, API 6D, or BS EN ISO 17292 standards.

These valves are fire-safe test approved and feature electrical continuity between the ball, stem, and body, ensuring safety and reliability. They are available in cryogenic and high-temperature metal-seated configurations, making them versatile for various industrial applications. The forged construction enhances mechanical properties, pressure retention, and overall quality.

Key Features:

• Sealing Performance: Standard double block sealing with primary OR AED type gaskets and secondary emergency seals for fire safety.
• Construction: Full die-forged structure for all pressure-containing parts, with flanged valves having integral flanges.
• Operation: Low seat-ball friction materials and surface finish ensure reliable sealing and long service life, with low operation torque.
• Design: Split and bolted body-closure connection, anti-static device, and anti blow-out proof stem design for enhanced safety.
